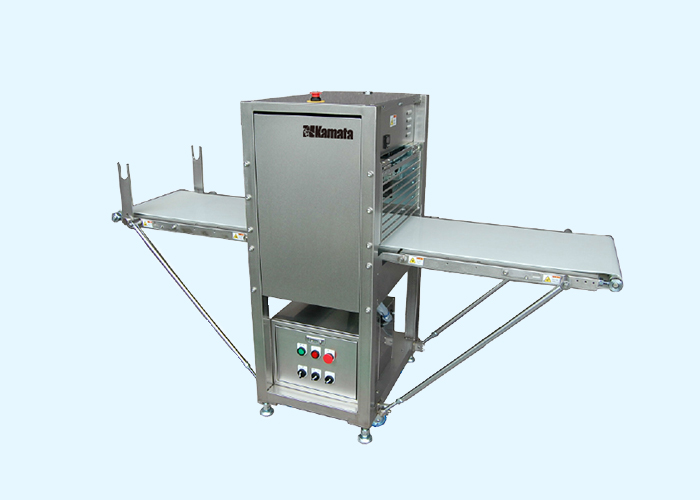

Dough sheet shape cutting machine
This machine is used to stamp out shapes of dough for pies, cookies, and other pastry.
Swapping in a different stamp die allows you to produce different shapes. The compact size ensures that it will easily fit anywhere.

[Features]
- Place a rolled-out sheet of dough onto the conveyor belt and use the stamp dies installed above the conveyor to cut dough into shapes.
- The stamp dies can be swapped without any special tools.
- Conveyor belt is 400mm wide.
- Dough can be cut up to about 350mm wide.
- We can also produce this unit to special-order dimensions.
- We can also produce a guillotine cutting unit (effective cut width: 380mm)
- The unit can also be machined for rotary cutting purposes.
[Stamp die examples]
- Leaf cut: for creating leaf-shaped pies
- Round cut: for round pies and cookies
- Chrysanthemum cut: for creating pies and cookies in the shape of this flower
- Double ring cut: for creating donuts
*We can provide you with a wide range of shapes like stars, animals, and more.
*In addition to the cut of the exterior, the interior can also be cut (e.g., leaf pie exterior cut and leaf vein interior cut)
[Product specifications]
Model | KTC |
---|---|
External dimensions | Width:2,100mm wide x Depth:700mm deep x Height:1,220mm tall |
Power | 3P 200V 0.4kW |
Take-ups | Optional |
Rotary Cutter | Optional |
Guillotine blades | Guillotine blades available separately |
Stamp dies | Stamp dies available separately |
