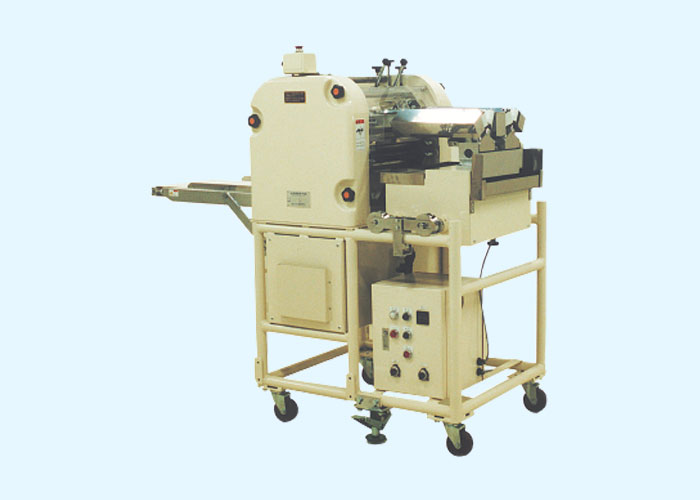

Molder_KCS
Roll breads forming device
Intended for use on a mass production line, this device works by feeding pieces of dough shaped like rods or bulbs onto the V-shaped conveyor belt and having them formed into roll breads.
One roll is formed in 1-2 seconds -- the blink of an eye!
[Features]
- Drawing on our long track record of providing crescent molder machinery to customers, we have made ongoing small refinements to develop this device.
- We continuously refine our products to ensure that they can form dough into distinct shapes, do so in a stable and consistent fashion, and without imperfection.
- We offer this unit with either a 2-lane, 3-lane, or 4-lane V-shaped conveyor belt.
- A conveyor belt can be attached to this unit to collect roll breads as they are discharged from the device.
- We also offer this unit in a formfactor designed to feed into a proofer on a continuous production line.
[Product specifications]
| Model | KCS403A | KCS400A | KCS503A | KCS500A | KCS603A |
|---|---|---|---|---|---|
| V-shaped conveyor belt | 2 lanes | 2 lanes | 3 lanes | 3 lanes | 4 lanes |
| Number of rollers | 3 | 2 | 3 | 2 | 3 |
| Roller width | 400mm | 400mm | 500mm | 500mm | 600mm |
| Discharge conveyor | Available separately | ||||
| Molding capacity | 6,000 pieces/hr. | 6,000 pieces/hr. | 9,000 pieces/hr. | 9,000 pieces/hr. | 12,000 pieces/hr. |
| Width | 740 | 740 | 840 | 840 | 940 |
| Depth | 920 | 920 | 920 | 920 | 920 |
| Height | 1360 | 1280 | 1360 | 1280 | 1360 |
| Power | 1.04kW | 0.95kW | 1.04kW | 0.95kW | 1.04kW |
| Weight | 440kg | 420kg | 510kg | 480kg | 600kg |
