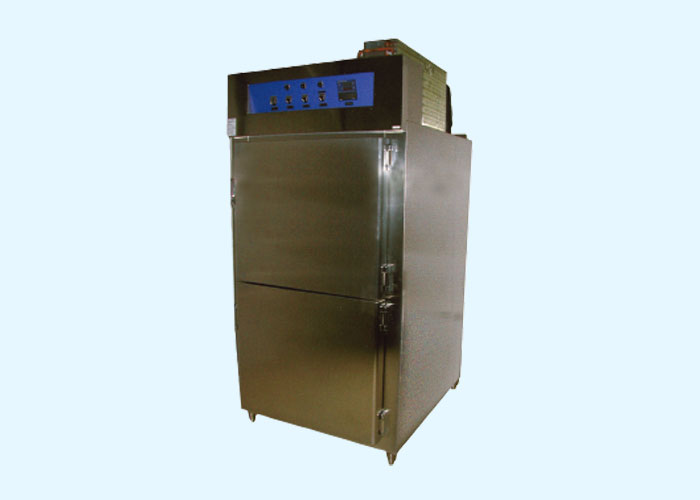

Freezer/Proofer_KFS-Ⅰ
A multi-use freezer cabinet
This cabinet can be used to freeze all manner of foods, from dough to items used in Japanese and Western confections. The advanced refrigeration capabilities enable stable freezing.
High capacity storage and a freezing and air-blast mist system allow for freezing items in a short time.
R404a refrigerant can also be used to achieve -33°C spray freezing. A specialized freezing component can also be used to achieve spray-freezing to -50°C.
[A range of sizes to choose from]
- KFS-II: small format fits in tinier spaces.
- KFS-I: recommended for shops with large production output.
- KFS-SR: a large device intended for factory contexts. Offers further freezing power.
[Optional features]
- We can also specially create large-format freezers catering to your production output.
[Product specifications]
| KFS-Ⅱ | KFS-I | KFS-SR | |
|---|---|---|---|
| Width (mm) | 850 | 1050 | 1300 |
| Depth (mm) | 950 | 1230 | 1600 |
| Height (mm) | 1760 | 2030 | 2160 |
| Material | Stainless steel panels | Stainless steel panels | Stainless steel panels |
| Insulation | 100mm | 100mm | 125mm |
| Power | 1.5kW | 2.2kW | 7.5kW+ |
| Freezer | 2HP air-cooled | 3HP air-cooled | 10HP air-cooled |
| Weight | 280kg | 450kg | 600kg |
| Shelves | 16 shelves, 70 pitch | 20 shelves, 70 pitch | |
| Freezer plate | Width:570mm wide x Depth:480mm deep x Height:64mm tall | Width:780mm wide x Depth:600mm deep x Height:65mm tall |
Whether you are planning to enter the bread production space or are already an existing customer, we invite you to submit your questions, requests, and feedback.
