Cutter_KTR

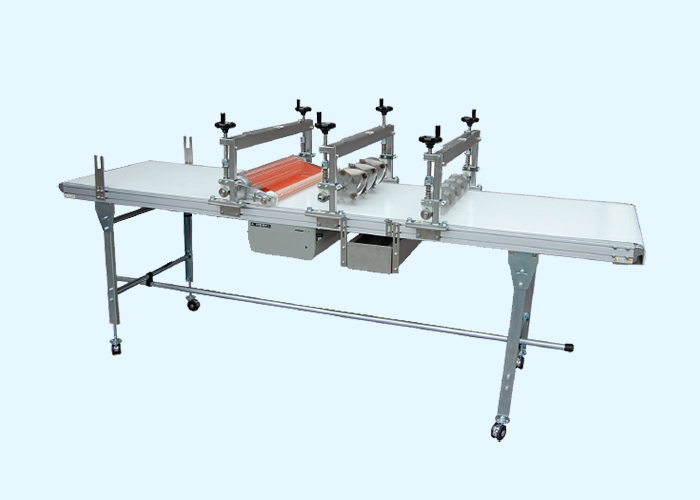

A dough sheet cutting machine
This machine is used to cut dough sheets used for croissants, pies, pastries, and other pastry.
A range of cuts can be achieved by installing different rotary cutter units.
[Features]
- Place a rolled-out sheet of dough onto the conveyor belt. Rotary cutters installed on the conveyor belt cut the dough into shape.
- Conveyor belt is 600mm wide. Dough can be cut up to about 500mm wide.
- Contains two points (take-ups) for installing rotary cutters.
[Rotary Cutter (optional)]
- Round blade cutter: vertical cuts
- Horizontal cutter: horizontal cuts
- Croissant cutter: cuts into croissant shape
- Ring cutter: performs round cuts
- Double ring cutter: creates concentric circles
- Pin roller: opens a hole in the dough for venting
*We can also produce a wide range of other cutter dies for you
*Also available in small formfactor (KTR2-500). Belt width is 500mm and effective cut width is 400mm.
*Croissant cutter is not triangular, but trapezoidal) The croissant cutter cuts these trapezoids on a diagonal. The round cutter cuts these trapezoids on the bottom and top.
[Product specifications]
| Model | KTR3-600 | KTR2-500 |
|---|---|---|
| External dimensions | Width:3,000mm wide x Depth:700mm deep x Height:1,100mm tall | Width :2,000mm wide x Depth :600mm deep x Height :1,100mm tall |
| Power | 3P 200V 0.4kW | 3P 200V 0.2kW |
| Take-ups | 2 points (standard) | 2 points (standard) |
| Rotary Cutter | Optional | Optional |
| Guillotine blades | Not attachable | Not attachable |
| Stamp dies | Not attachable | Not attachable |
We can also produce this unit to custom dimensions to fit your space.
