Cutter_KTA

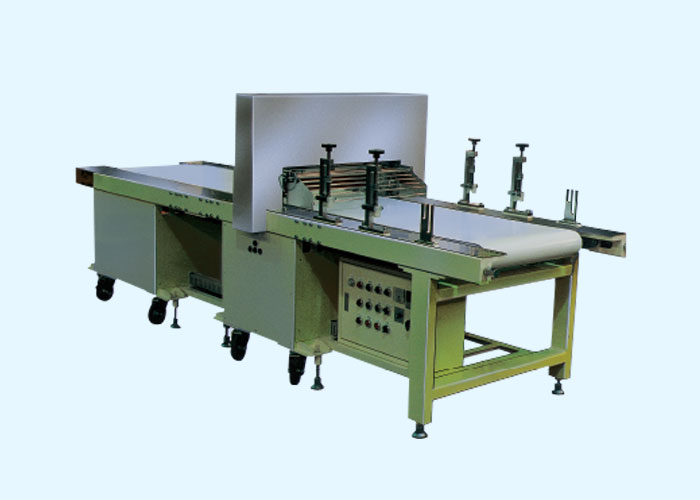

A dough sheet cutting machine

This machine is used to cut dough sheets used for croissants, pies, pastries, and other pastry.
A range of cuts can be achieved by installing different rotary cutter units.

KTA
[Features]
  • Place a rolled-out sheet of dough onto the conveyor belt. Guillotine blades installed on the conveyor belt make horizontal cuts.
  • Conveyor belt is 600mm wide. Dough can be cut up to about 500mm wide.
  • Guillotine blades move up and down via air cylinders.
  • The timer counter can be configured to adjust the cutting pitch.
  • Combine with a round blade cutter to cut into rectangular forms.
  • Adjusting the pitch of the round blade cutter and the timer interval lets you create a wide range of rectangular forms (squares, rectangles, thin rectangles, etc.)
  • Rotary cutters (optional) can be attached to achieve a range of shapes.
  • Contains two points (take-ups) for installing rotary cutters.
[Rotary Cutter (optional)]
  • Round blade cutter: vertical cuts
  • Horizontal cutter: horizontal cuts
  • Croissant cutter: cuts into croissant shape
  • Ring cutter: performs round cuts
  • Double ring cut: creates concentric circles
  • Pin roller: opens a hole in the dough for venting

*We can also produce a wide range of other cutter dies for you

*Croissant cutter is not triangular, but trapezoidal) The croissant cutter cuts these trapezoids on a diagonal. The round cutter cuts these trapezoids on the bottom and top.

[Product specifications]
External dimensions Width:4,300mm wide x Depth:1,100mm deep x Height:1,350mm tall
Power 3P 200V 0.75kW
Air supply required
Take-ups 2 points (standard)
Rotary Cutter Optional
Guillotine blades uillotine blades included
Stamp dies Not attachable
